Finally a alternative solution to complex DCC setting. No more spending time adjusting CV’s, adding boosters, reading indexing charts, learning to use JMRI software and complex network wiring with power districts just to run your train.

Imagine, connect two wires for constant track power or use on-board battery to operate your fleet of engines. Each loco has a control module that receives commands thru the handheld radio, not thru the track. Each loco is easily tweaked for optimum running by using a knob to make the adjustments. Consisting takes 10 seconds to create and 2 seconds to remove. Even locos from different manufacturers are automatically matched.  Choose video part one for basic setup and consisting.



Now with DCC mode. Backwards compatible to your existing DCC system. Keep your investment while transitioning to the RailPro system.

Installing in “HO”, “ON30” , S, O & G scale locomotives. The first full color touch screen wireless hand controller for operation, sound control and accessories of all your locos. For small scale locos choose the LM-3S with the standard 9 pin DCC plugin socket for power, motor control and headlights. Plus has 6 pin wiring harness to connect sounds and additional lighting effects. For Large scale locos choose the LM-3S-G with a 8 amp stall current, screw terminals for power and dual motors along with dual 5 v output and a 9 pin connector for all your lighting effects.



Large Scale LM-3S-G, $167 with HD sound. Click here for complete description.

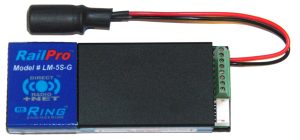

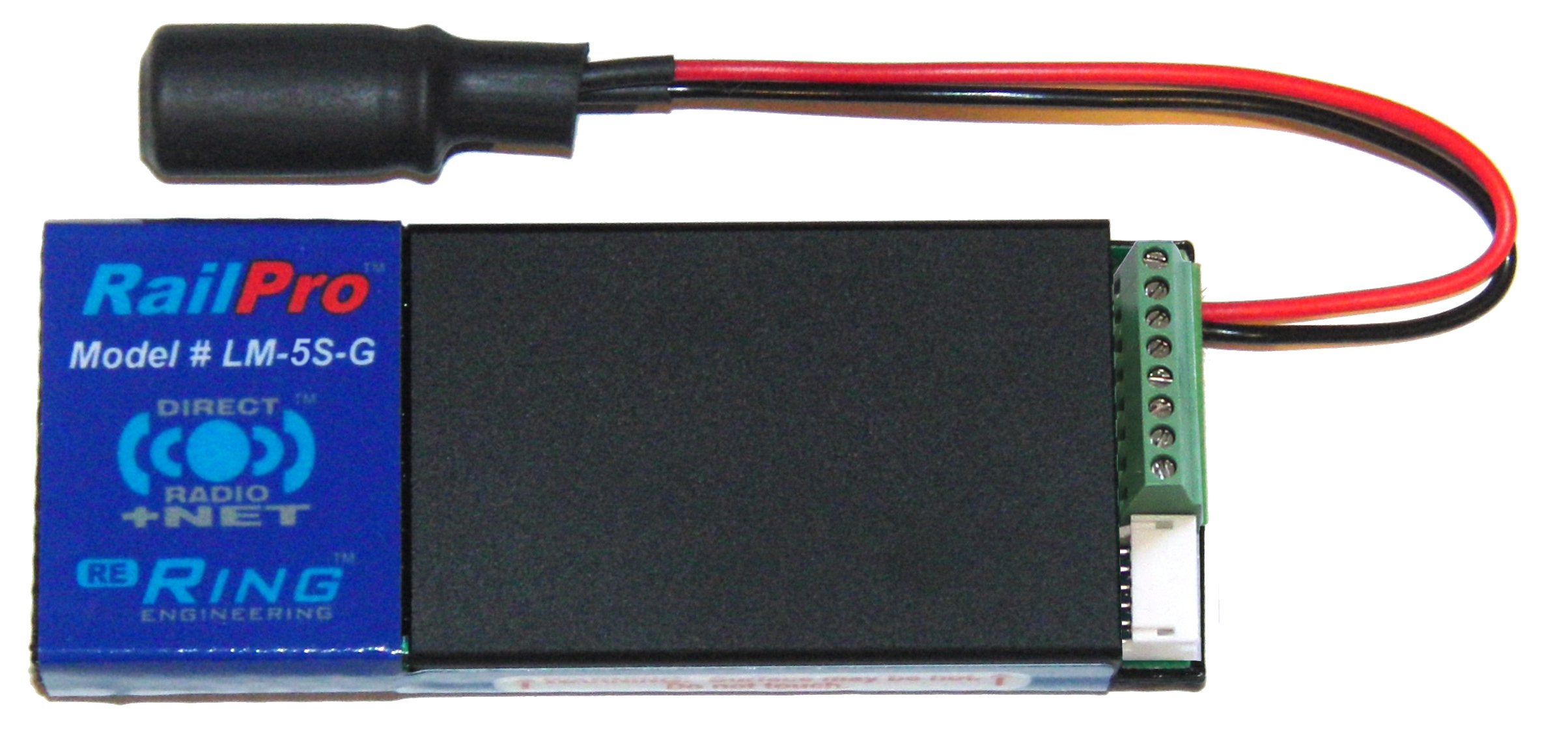

RailPro Large Scale Loco Module

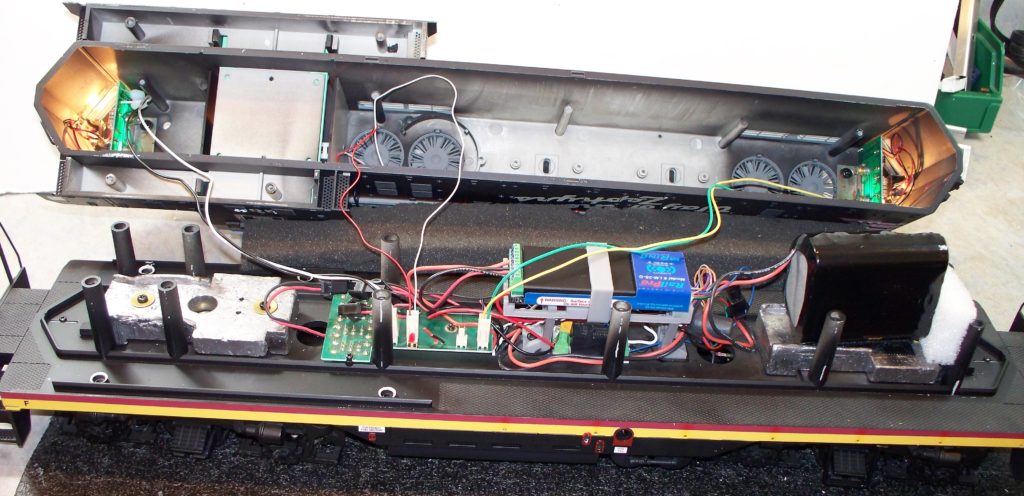

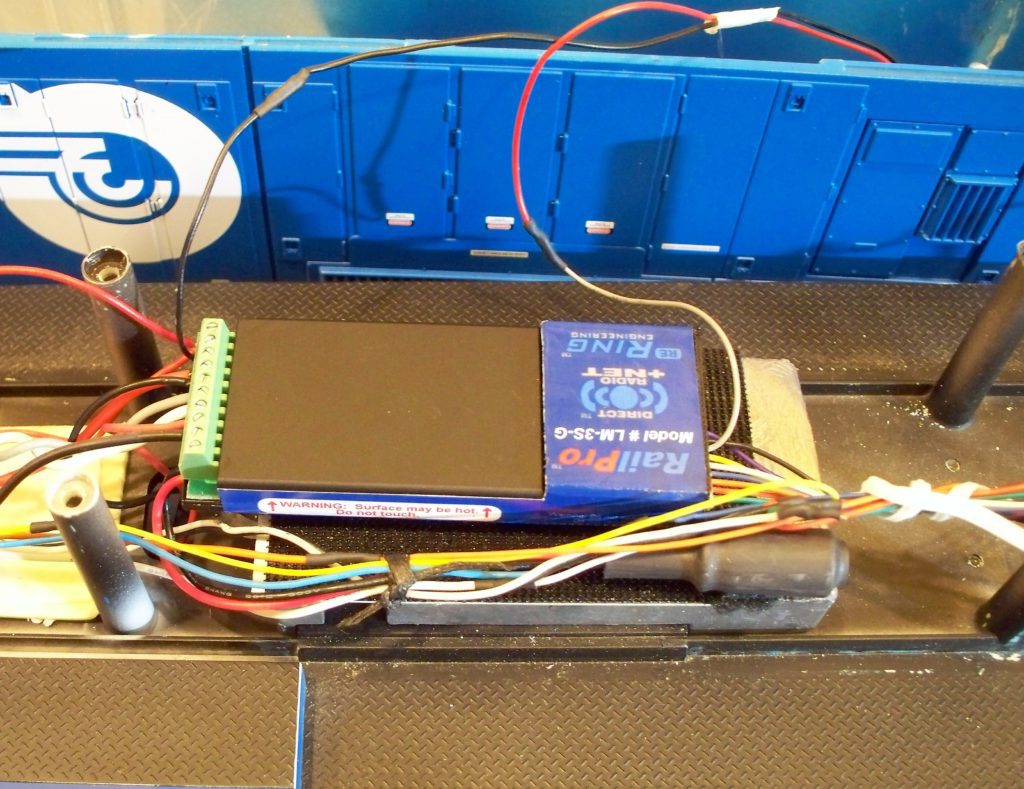

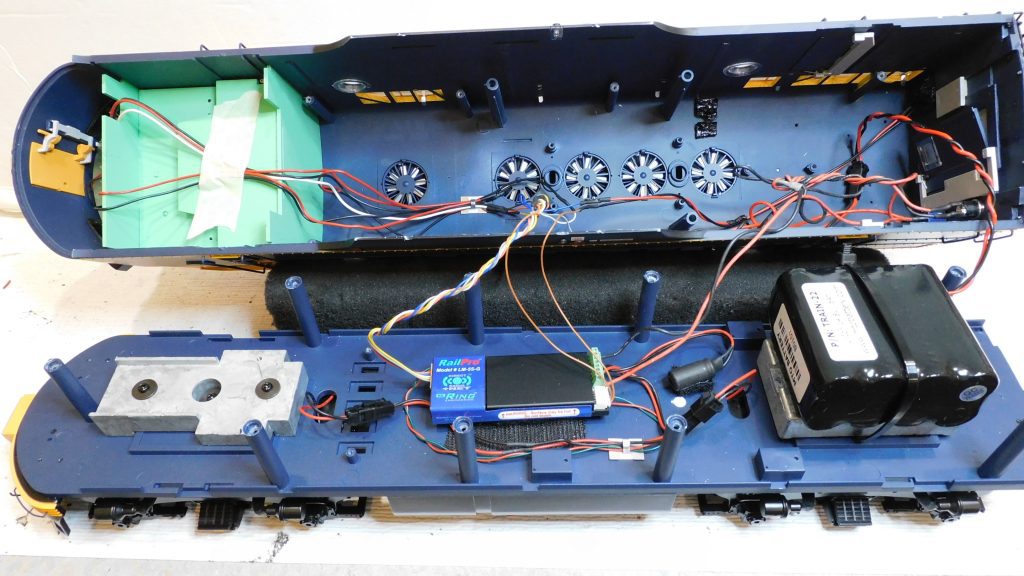

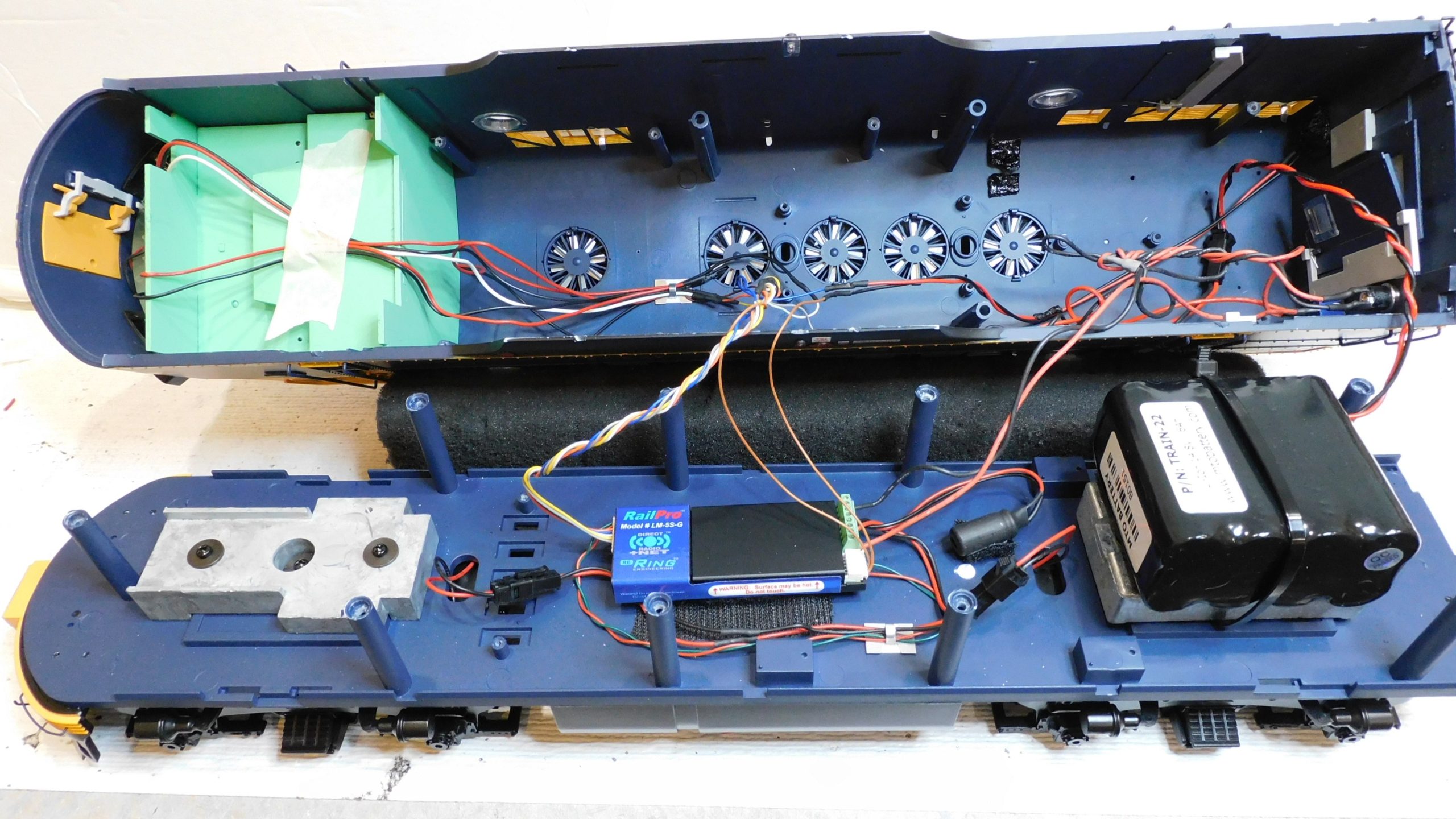

Photo of installation of LM-3S-G in USA GP-9

Click on each image to view hand held controller operational screens.

Select your loco, trigger the start-up sounds, release hand brake, select the lights and use the large knob to run your engine. There are 14 programable function buttons for sounds and lights.

Click here for complete bundle pricing.



Below: HC-2 Color Touchscreen Handheld Controller w/Direct Radio, $289.

HC-2AndIcons

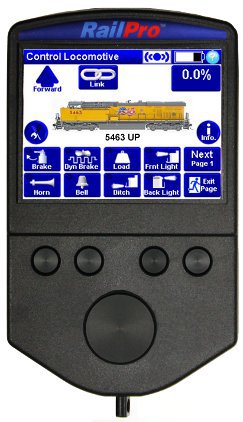

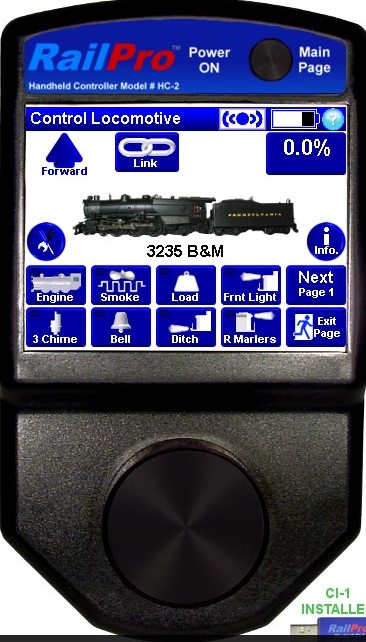

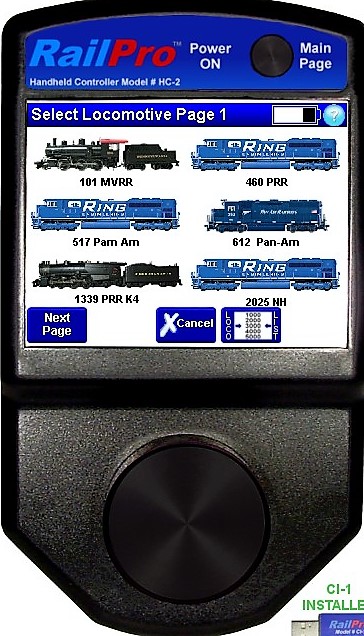

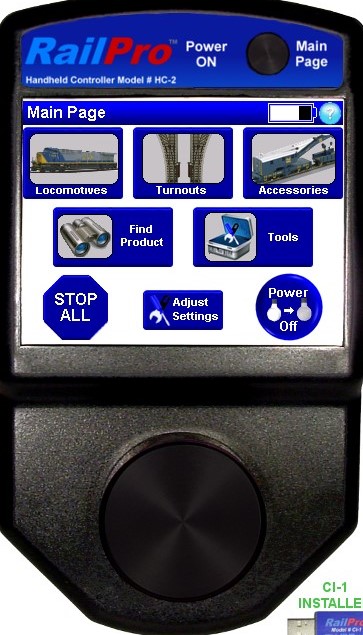

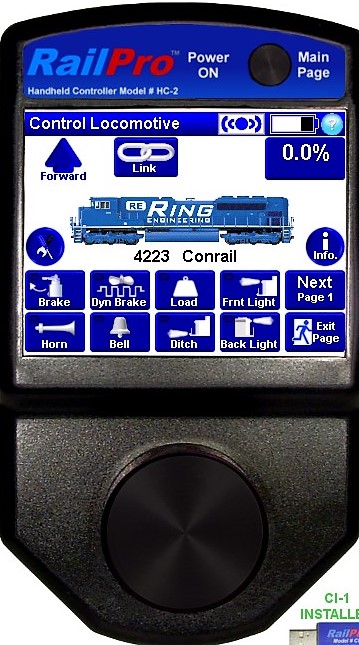

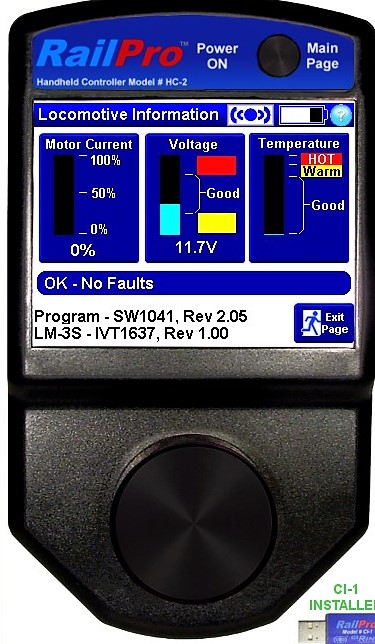

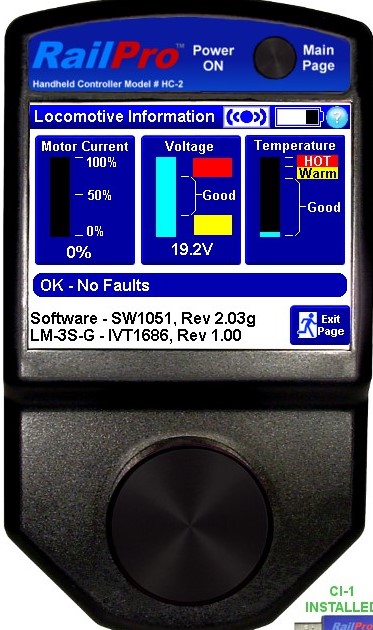

Below: Sample screen shots using the handheld controller.

MainPage PageControlTurnout PageLocomotiveAdvancedSetup1 PageLocomotiveAdvancedSetup2 PageSelectLoco ScreenControlLoco

Below: LM-3S HO/ON30 Scale Locomotive Module with Sound, $99. LM-3 without sound, $59.

Below: RPK-1 Starter Kit* for HO with Wireless Color Touchscreen Handheld Controller and Power supply. $389.00   *(PWR-56 may not power some O and G sale locos).

RPK-1

For a complete description of system with videos click on this link:  RailPro Learn more



*IMPORTANT NOTE for O and G Scale Users choosing the PWR-56 power supply for track power.
The PWR-56 was primarily designed for HO scale locomotives but can be used to power O and G scale locos that use our LM-3S-G Module.  The PWR-56 has enough power for 1 – 2 O/G scale locomotives with LM-3S-G modules installed. The PWR-56 has about 20% less voltage than a typical G scale power supply so your trains top speed will likely be about 20% slower. Also in some engines there are capacitors/inductors connected across the motor terminals that must be removed or the PWR-56 could error on startup.



Specifications:
Output Current: 4 Amps
with Auto Recovery Short Circuit Protection
Output Voltage: 14.2 volts regulated DC
Input  Voltage: 100-240VAC, 50/60Hz





Below battery installation for Bachmann ON30 steam loco. RailPro w/sound installed in tender. 3 hour Li-Po battery inside boxcar.

100_5253 100_5248100_5234
